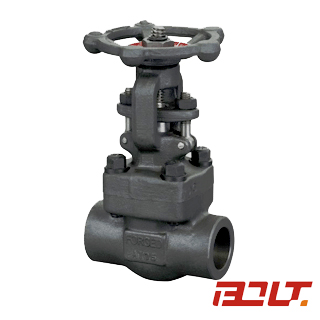

锻钢闸阀

NO.

Part Name

CS to ASTM

AS to ASTM

SS to ASTM

Type A105

Type F22

Type F304(L)

Type F316(L)

1

Body

A105

A182 F22

A182 F304(L)

A182 F316(L)

2

Seat Ring

A276 420

A276 304

A276 304(L)

A276 316(L)

3

Wedge

A276 430&410

A182 F304

A182 F304(L)

A182 F316(L)

4

Stem

A182 F6

A182 F304

A182 F304(L)

A182 F316(L)

5

Gasket

Corrugated SS+graphite

SS+PTFE

6

Bonnet

A105

A182 F22

A182 F304(L)

A182 F316(L)

7

Bonnet Bolt

A193 B7

A193 B16

A193 B8

A193 B8M

8

Pin

A276 420

A182 F304

9

Gland

A276 410

A182 F304(L)

A182 F316(L)

10

Gland Eyebolt

A193 B7

A193 B16

A193 B8

A193 B8M

11

Gland Flange

A105

A182 F11

A182 F304(L)

A182 F316(L)

12

Gland Nut

A194 2H

A194 4

A194 8

A194 8M

13

Yoke Nut

A276 420

14

H.W.Lock Nut

A194 2H

A194 4

A194 8

A194 8M

15

Nameplate

SS

16

Handwheel

A197

17

Bearing Gasket

A473 431

18

Stem Packing

Flexible Graphite

PTFE

Suitable Medium

W.O.G.etc

W.O.G.etc

HNO3,CH2OOH etc

Suitable Temperature

-29~425

-29~550

-29~180

NPS

Conv.

3/8"

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

Full

3/8"

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

L

79

79

92

111

120

120

140

178

H(OPEN)

158

158

169

197

236

246

283

330

W

100

100

100

125

160

160

180

200

Weights

Bolted

2.1

2.0

2.3

4.3

5.9

6.9

11.1

15.2

Welded

1.8

1.7

2.0

3.8

5.1

6.1

10.2

14.2

NPS

Conv.

3/8"

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

Full

3/8"

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

L

92

111

111

120

120

140

178

210

H(OPRN)

169

197

197

236

246

283

330

354

W

100

125

125

160

160

180

200

240

Weights

Bolted

2.5

4.3

4.2

6.6

8.8

12.5

17.2

23.5

Welede

2.4

4.2

4.0

6.3

8.7

12.1

17.2

22.0
